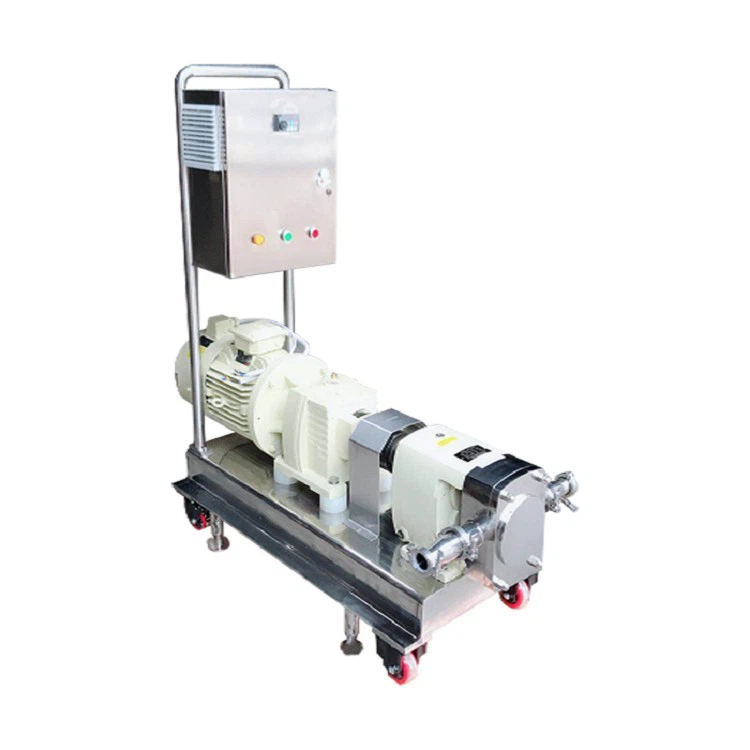

1.Production introduction of Bi-wing Rotary Lobe Pump
Bi-wing Rotary lobes have the ability to handle highly viscous fluids, pastes and handle fluids containing soft solids without causing any damage. Used for transferring sauces, salad dressing, dough, oils, concentrates, chocolate, fondant, ketchup, liquid egg, cream, yogurt, cheeses, mayonnaise, syrups and many others.
2.Production Parameter of BI-Wing Rotary Lobe Pump
Pump Type: Bi-Wing Rotary Lobe
Capacity: See chart below
motor, 208-230/460 volts AC 3-phase,customized too
Seal Type: Mechanical Seal
Elastomers: EPDM
Frame: Is built in 304 stainless with Base Leveling Mount.
|
Model |
Flow(L)/100rpm |
Speed(rpm) |
Flow Rate(L) |
Power(kw) |
|
UPT-3 |
3L |
200-500 |
300-800 |
0.55 |
|
UPT-6 |
6L |
200-500 |
650-1600 |
0.75 |
|
UPT-8 |
8L |
200-500 |
850-2160 |
1.5 |
|
UPT-12 |
12L |
200-500 |
1300-3200 |
2.2 |
|
UPT-20 |
20L |
200-500 |
2100-5400 |
3 |
|
UPT-30 |
30L |
200-500 |
3200-6400 |
4 |
|
UPT-36 |
36L |
200-500 |
3800-7600 |
4 |
|
UPT-52 |
52L |
200-500 |
5600-11000 |
5.5 |
|
UPT-70 |
70L |
200-500 |
7100-14000 |
7.5 |
|
UPT-78 |
78L |
200-500 |
9000-18000 |
7.5 |
|
UPT-100 |
100L |
200-500 |
11000-22000 |
11 |
|
UPT-135 |
135L |
200-500 |
15000-30000 |
15 |
|
UPT-160 |
160L |
200-500 |
17000-34000 |
18.5 |
|
UPT-200 |
200L |
200-500 |
21600-43000 |
22 |
3.Comparative Chart
|
Type |
Max. Viscosity (cp) |
Max.Size Soft Solids |
Gentle with Soft Solids(Inches) |
Suction Lift (Feet) |
Cost |
Bidirectional |
|
Centrifugal Pump |
900 |
NR |
NR |
0 |
$ |
NO |
|
Lobe Pump |
200,000 |
0.6 |
+/- |
10 |
$$$ |
YES |
|
Piston Pump |
1,000,000 |
1 |
+/- |
13 |
$$$$ |
YES |
|
Screw Pump |
1,000,000 |
1.25 |
++ |
22 |
$$ |
YES |
|
Twin Screw Pump |
1,000,000 |
1.62 |
++ |
20 |
$$$$$ |
YES |
|
Diaphragm Pump |
50,000 |
5/16'' |
++ |
19 |
$$ |
NO |
++GOOD +FAIR -POOR NR=NOT RECOMMENDED
Bi-wing Lobe
4. Applications of Bi-Wing Rotary Lobe Pump
|
Application |
Pump Series |
||
|
Sanitary |
Industrial |
||
|
Food |
✓ |
|
|
|
Beverage |
✓ |
|
|
|
Confectionery |
✓ |
|
|
|
Dairy |
✓ |
|
|
|
Pharmaceutical |
✓ |
|
|
|
Prepared Foods |
✓ |
|
|
|
Pulp&Paper |
|
✓ |
|
|
Soaps&Detergents |
|
✓ |
|
|
Sugar |
✓ |
✓ |
|
5. Delivery,shipping and service
● 7 Days delivery for standard
15 Days for Non-standard
● Ocean shipping as normal
Air shipping as option
● For whole pump,support one year warranty
For Spare part,like mechanical seal half year warranty
