1.Production introduction of Vertical Colloid Mill

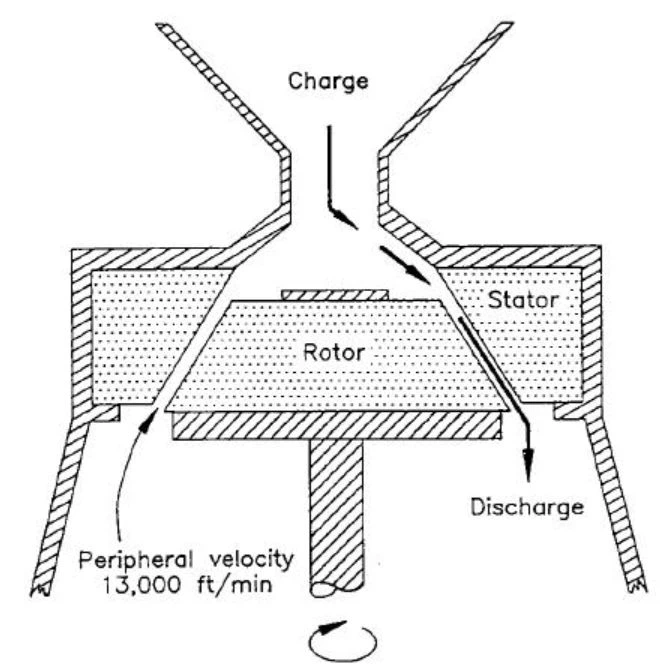

A Vertical colloid mill is a machine that is used to reduce the particle size of a solid in suspension in a liquid, or to reduce the droplet size in emulsions. Colloid mills work on the rotor-stator principle: a rotor turns at high speeds (0-5000 RPM). A high level of hydraulic shear stress is applied on the fluid which results in disrupting and breaking down the structure. Colloid mills are frequently used to increase the stability of suspensions and emulsions, but can also be used to reduce the particle size of solids in suspensions. Higher shear rates lead to smaller droplets, down to approximately 1 μm which are more resistant to emulsion separation.



2.Application of Colloid mill
● A vertical colloid mills are used in the following industries:
● Pharmaceutical
● Cosmetic
● Paint
● Soap
● Textile
● Paper
● Food
● Grease
3.Main Parameter Sheet
|
Model |
Particle size(um) |
Gap adjust(mm) |
Power(kW) |
Speed(rpm) |
Inlet(mm) |
Outlet(mm) |
|
JML-50 |
5-40 |
1-0.01 |
1.1 |
2900 |
32 |
15 |
|
JML-80 |
5-40 |
1-0.01 |
3 |
2900 |
50 |
25 |
|
JML-100 |
5-40 |
1-0.01 |
5.5 |
2900 |
50 |
32 |
|
JML-120 |
5-40 |
1-0.01 |
7.5 |
2900 |
65 |
40 |
|
JMF-80 |
5-40 |
1-0.01 |
4 |
2900 |
50 |
25 |
|
JMF-100 |
5-40 |
1-0.01 |
5.5 |
2900 |
50 |
32 |
|
JMF-120 |
5-40 |
1-0.01 |
7.5 |
2900 |
65 |
40 |
|
JMF-140 |
5-40 |
1-0.01 |
11 |
2900 |
80 |
40 |
|
JMF-180 |
5-40 |
1-0.01 |
15 |
2900 |
120 |
65 |
|
JMF-200 |
5-40 |
1-0.01 |
22 |
2900 |
120 |
65 |

Two types of blade
4. Type of Vertical Colloid Mill

Sanitary vertical colloid mill

Sanitary Split-type colloid mill

Vertical colloid mill

Split-type colloid mill
